Spool Drawings
Automatic spool splitting, fabrication spool isometrics, shop and field spool IDs and revision control.

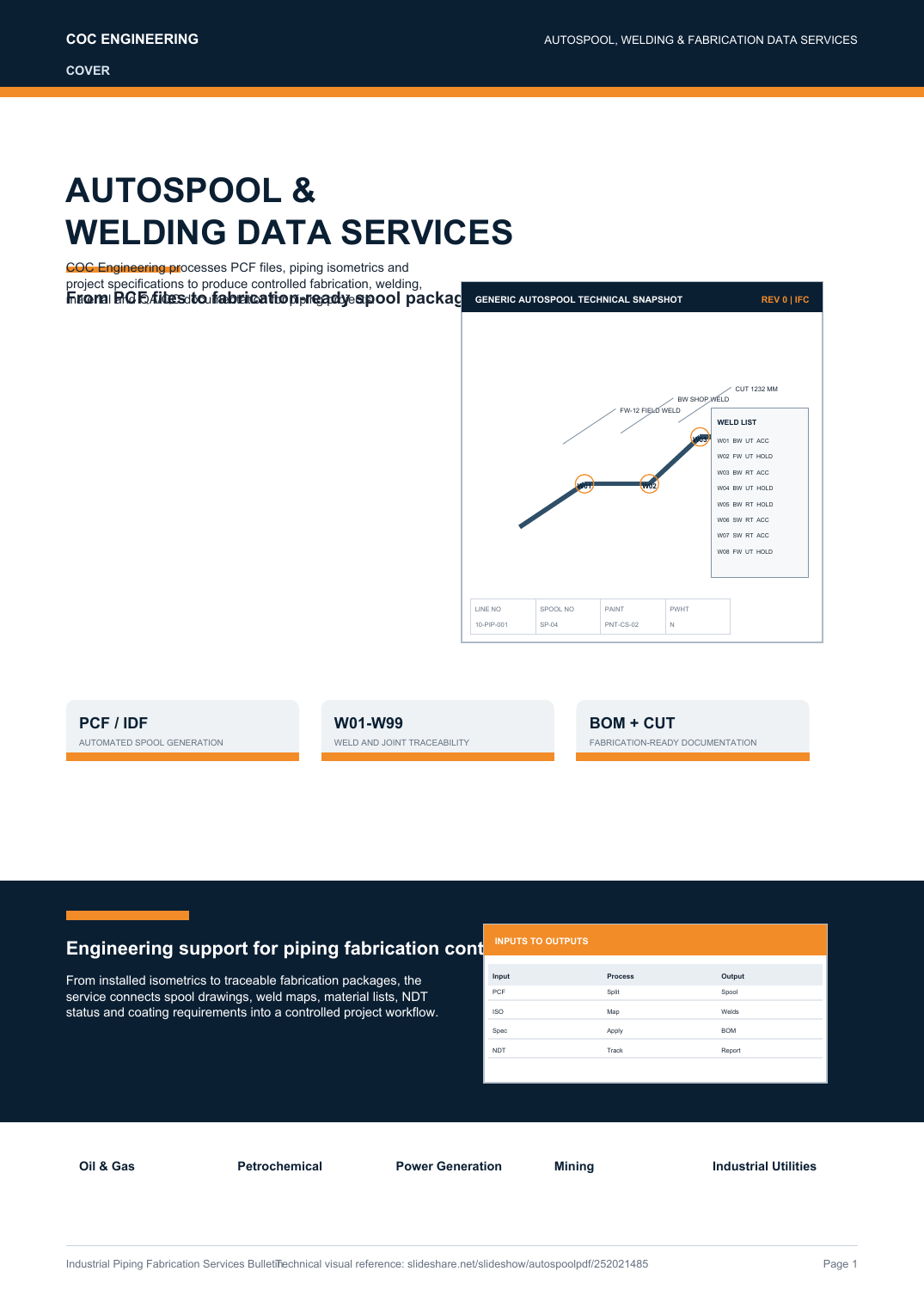

Industrial Piping Fabrication Services Bulletin
AutoSpool, Welding & Fabrication Data Services
From PCF files to fabrication-ready spool packages. COC Engineering processes PCF files, piping isometrics and project specifications to produce controlled fabrication, welding, material and QA/QC documentation for piping projects.
Engineering support for piping fabrication control
From installed isometrics to traceable fabrication packages.
The service connects spool drawings, weld maps, material lists, NDT status and coating requirements into a controlled project workflow.
Inputs such as PCF files, isometrics and project specifications are split, mapped, applied, tracked and reported as fabrication-ready documentation.
PCFFiles to spool packages
QA/QCTraceable fabrication records
Service overview
Controlled spool, welding, material and QA/QC documentation.
COC Engineering supports piping fabrication teams by converting engineering data into consistent spool packages, weld lists, inspection references and status reports.
- PCF / IDF and isometric processing
- Automated spool generation and revision control
- Weld and joint traceability
- BOM, MTO and pipe cutting lists
- Fabrication, NDT, coating and completion tracking
AutoSpool deliverables

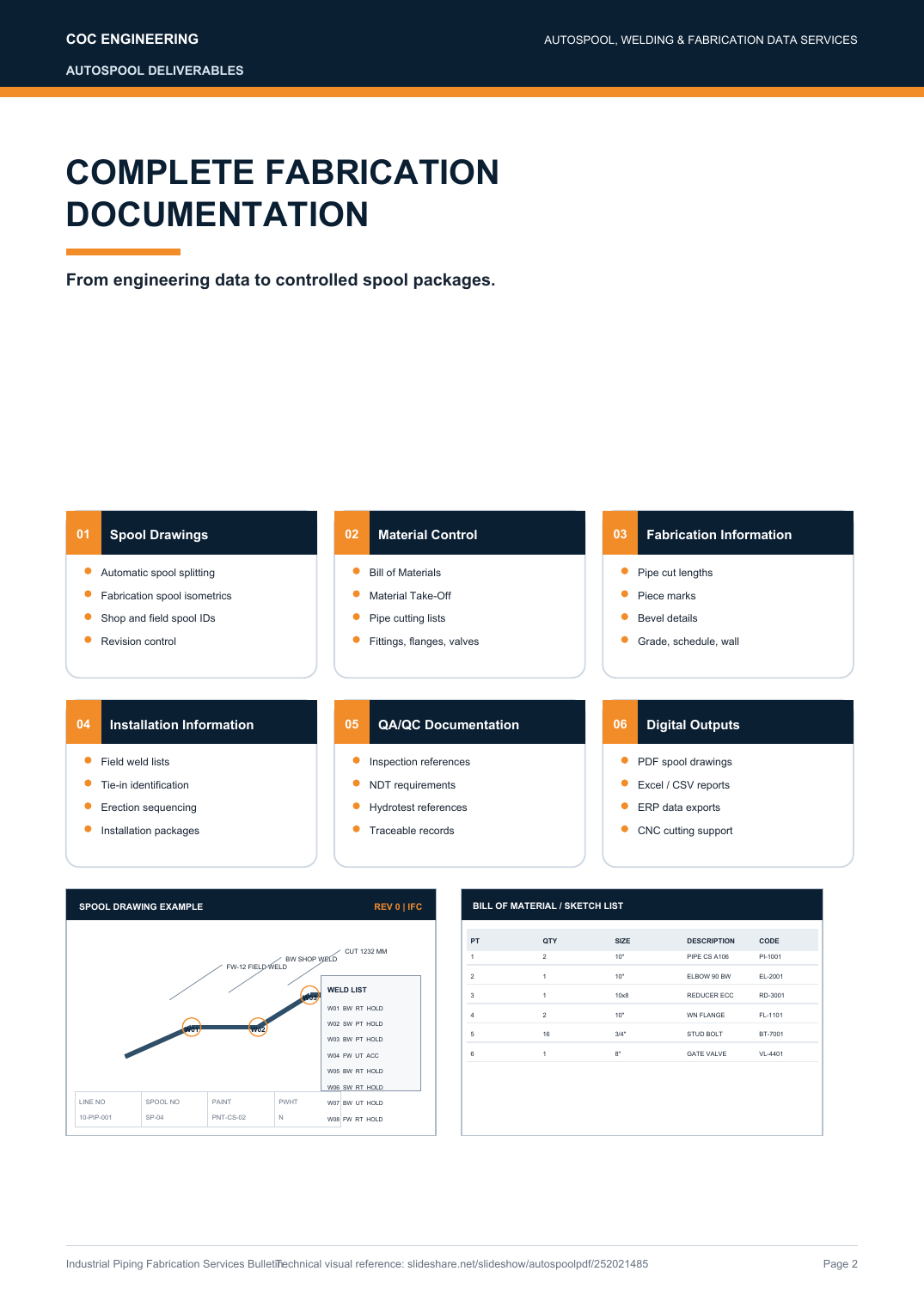

Complete fabrication documentation
From engineering data to controlled spool packages.
Material Control
Bill of Materials, Material Take-Off, pipe cutting lists, fittings, flanges and valves.
Fabrication Information
Pipe cut lengths, piece marks, bevel details, grade, schedule and wall information.
Installation Information
Field weld lists, tie-in identification, erection sequencing and installation packages.
QA/QC Documentation
Inspection references, NDT requirements, hydrotest references and traceable records.
Digital Outputs
PDF spool drawings, Excel / CSV reports, ERP data exports and CNC cutting support.

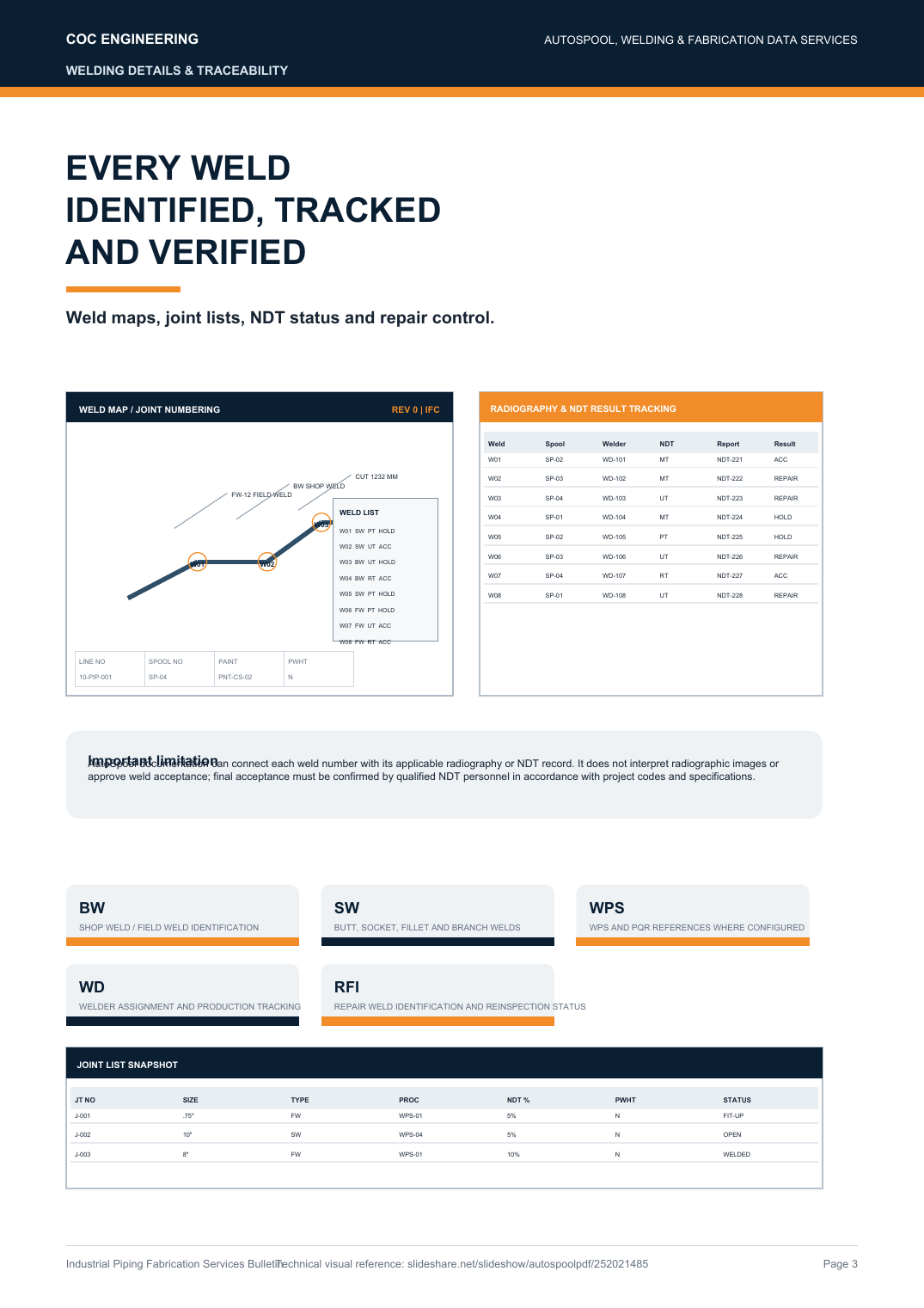

Welding details & traceability
Every weld identified, tracked and verified.
AutoSpool documentation can connect each weld number with its applicable radiography or NDT record. Final acceptance remains with qualified NDT personnel in accordance with project codes and specifications.
BWShop and field weld identification
SWButt, socket, fillet and branch welds
WPSWPS and PQR references
WDWelder assignment tracking
RFIRepair and reinspection status
NDTRadiography and result tracking

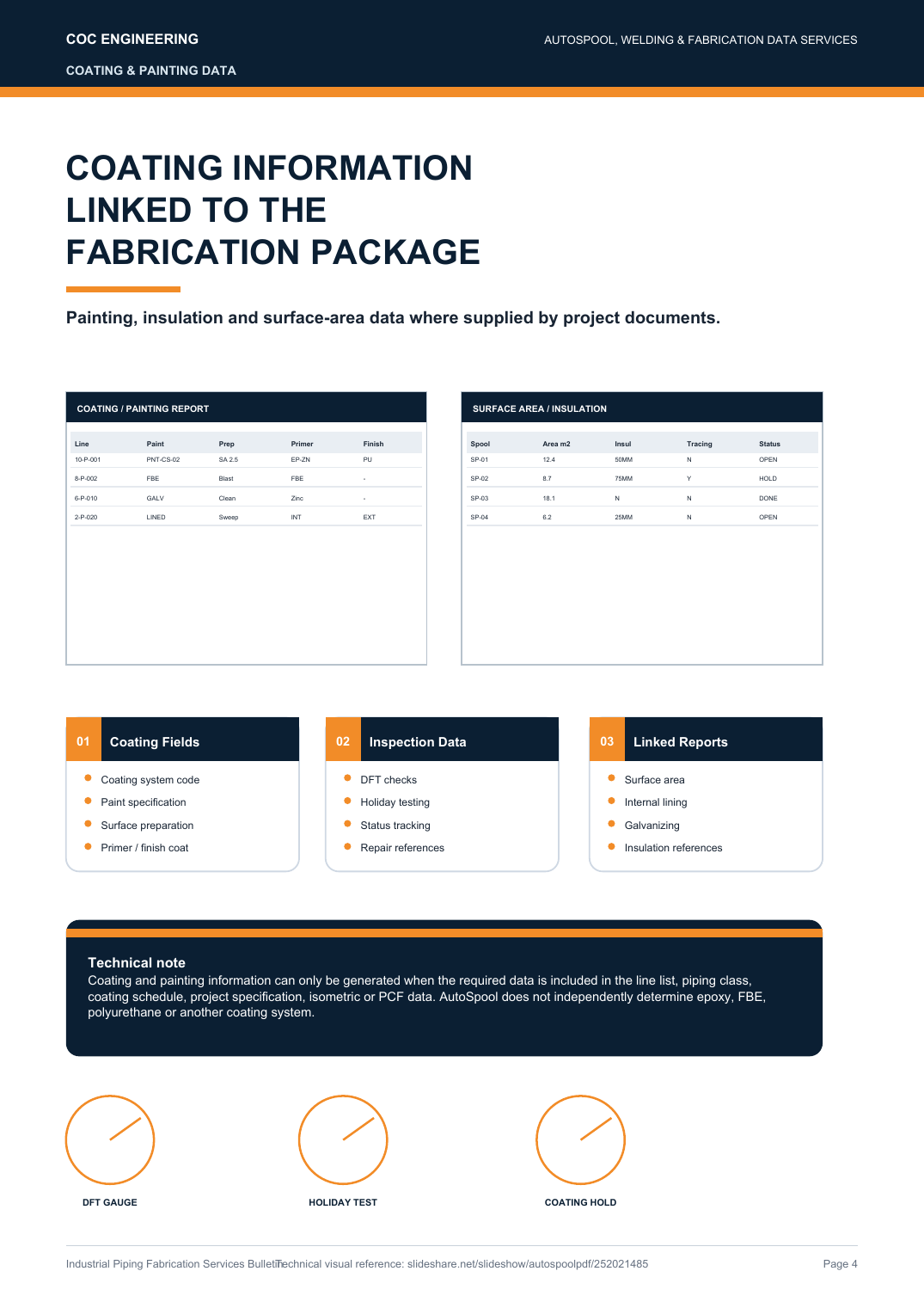

Coating & painting data
Coating information linked to the fabrication package.
Painting, insulation and surface-area data can be included where supplied by project documents.
- Coating system code and paint specification
- Surface preparation, primer and finish coat
- DFT checks, holiday testing and status tracking
- Surface area, internal lining, galvanizing and insulation references
Workflow

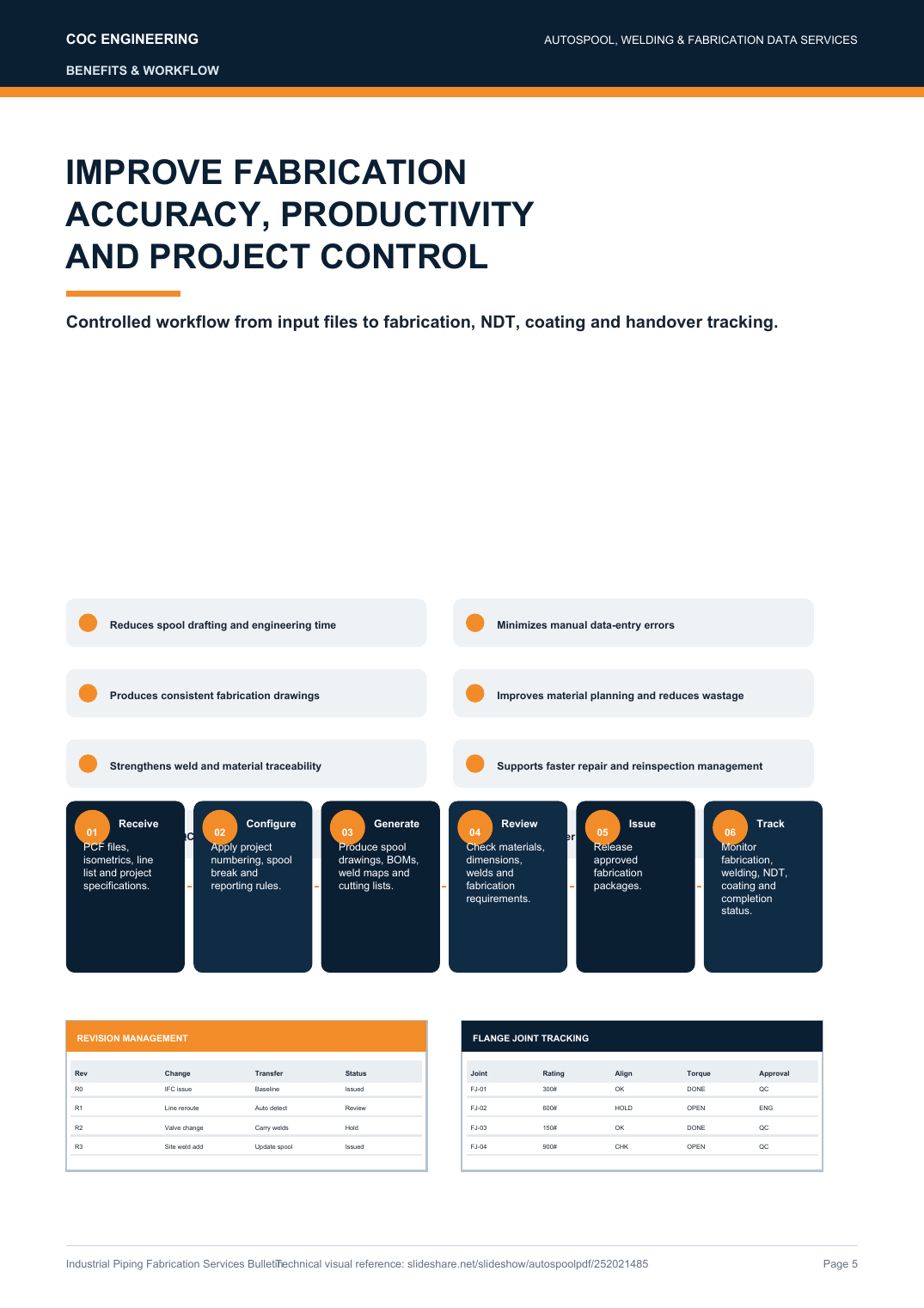

Controlled workflow from input files to handover tracking.
Improve fabrication accuracy, productivity and project control.
01
Receive
PCF files, isometrics, line list and project specifications.
02
Configure
Apply project numbering, spool break and reporting rules.
03
Generate
Produce spool drawings, BOMs, weld maps and cutting lists.
04
Review
Check materials, dimensions, welds and fabrication requirements.
05
Track
Monitor fabrication, welding, NDT, coating and completion status.
Benefits
Improve fabrication accuracy and project control.
The package reduces manual work while strengthening traceability through fabrication and completion.
Reduces drafting time
Automated spool generation accelerates production of repeatable packages.
Minimizes errors
Controlled data flow reduces manual data-entry mistakes.
Improves material planning
BOM, MTO and cutting lists support planning and reduce wastage.
Supports completion
Weld, NDT, coating and repair tracking support faster mechanical completion.
Industries
Piping fabrication support for demanding industrial sectors.
Built for teams managing traceable fabrication documentation.
Oil & Gas
Petrochemical
Power Generation
Mining
Industrial Utilities

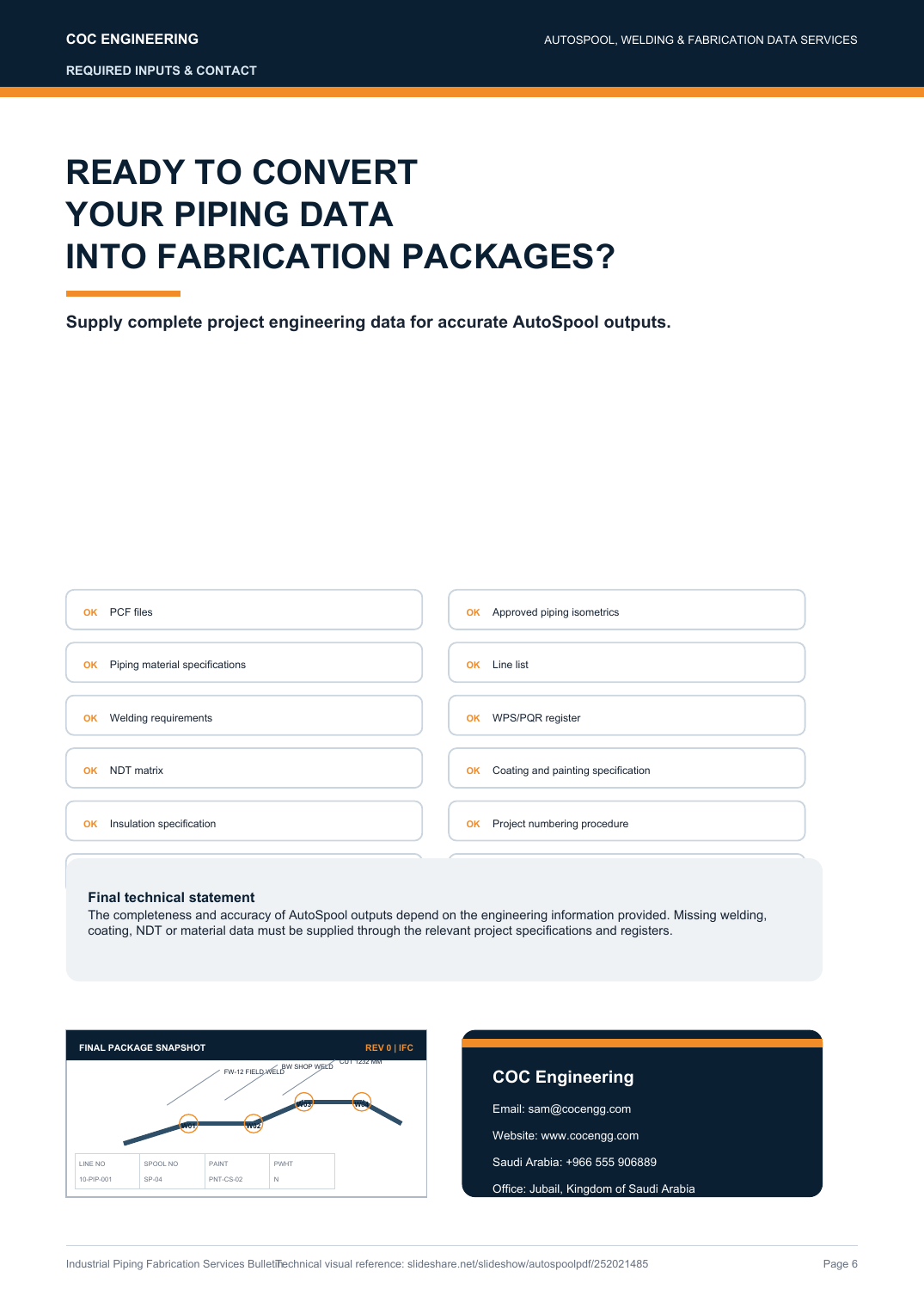

Required inputs
Ready to convert your piping data?
The completeness and accuracy of AutoSpool outputs depend on the engineering information provided. Missing welding, coating, NDT or material data must be supplied through the relevant project specifications and registers.
OKPCF files
OKApproved piping isometrics
OKPiping material specifications
OKLine list
OKWPS/PQR register
OKNDT matrix
OKCoating and insulation specification
OKClient drawing template
Bulletin visuals
AutoSpool source visuals
All pages from the AutoSpool, Welding & Fabrication Data Services bulletin are included as visual references for the website service page.
